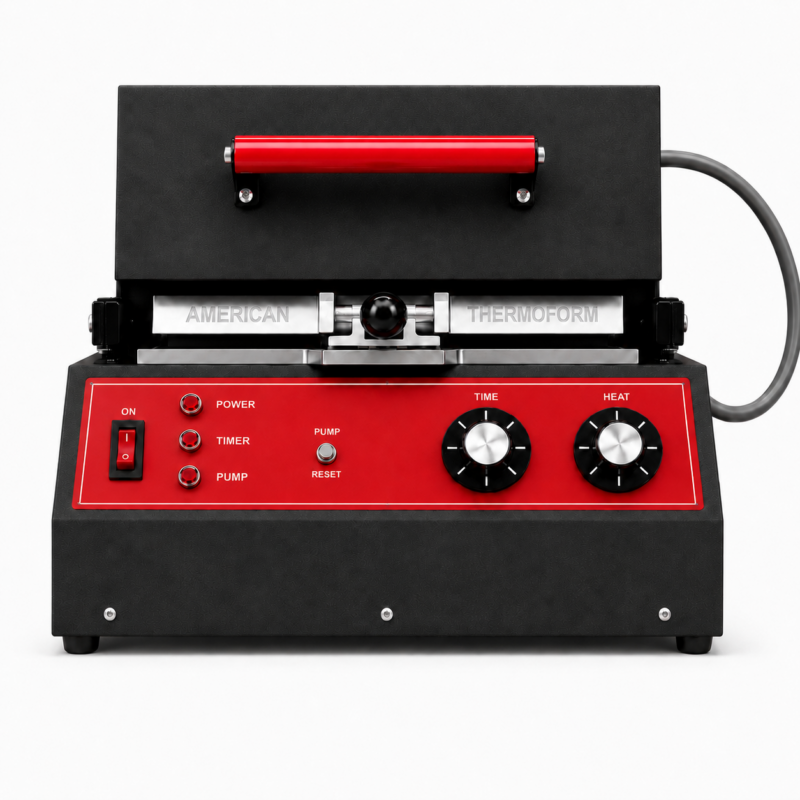

EZ-Form Brailon Duplicator
$4,175.00
To this day, the EZ-Form machine is the most accurate way to reproduce braille and tactile graphics. Safe and easy to use, the EZ-Form makes permanent and inexpensive teaching aids and braille copies from a single master using Brailon®.
EZ-Form Voltage
- EZ-Form Machine 110V | SKU: M2/E-Z115
- EZ-Form Machine 220V | SKU: M2/E-Z220
Optional Frame Sizes
The EZ-Form comes with one included frame, however, if you would like to purchase additional frame sizes for your EZ-Form machine these are your options and pricing.
- FRAME 11×11.5″ additional $454.99
- FRAME 9.75×11.5″ additional $454.99
- FRAME 8.5×11″ additional $454.99
- FRAME 21×29.7cm / A4 additional $475.99
EZ-Form Warranty
The EZ-Form machine comes with a 1 year warranty on parts. An optional extended warranty will extend the warranty length and offers additional benefits. See warranty details tab below.
- 1 Year Extended Warranty Additional $409.99
- 2 Year Extended Warranty Additional $685.99
- 3 Year Extended Warranty Additional $975.99
- Description
- Additional information
- Warranty
- Tech Specs
- Manual
- Videos
Description
To this day, the EZ-Form Brailon® Duplicator remains the most accurate way to reproduce braille and tactile graphics. Safe and simple to operate, the EZ-Form allows you to create permanent, cost-effective teaching aids and braille copies from a single master using Brailon®.
Often referred to as the Thermoform Machine, the EZ-Form is extremely user-friendly. Simply place your master copy or mold onto the machine, then position a sheet of our specially formulated Brailon® plastic on top and close the clamp. Slide the heating element forward to cover the master and wait a few seconds. Once the copy is complete, slide the heating element back, disengage the clamp, and remove your Brailon® copy. The entire process takes only seconds, delivering a precise and high-quality reproduction of your master.
Each EZ-Form includes one frame. Available frame options are shown available.
Please note: we only recommend using Brailon® with these machines. Brailon® is a safe, non-toxic plastic specifically formulated for use with the Maxi-Form. Using other materials may be hazardous.
Additional information
| Weight | 50 lbs |
|---|---|
| Dimensions | 16.25 × 23 × 28 in |
| Voltage | EZ-Form Machine 110V, EZ-Form Machine 220V |
Warranty
Standard Warranty This product comes with a 1 year warranty on parts Extended Warranty While these machines are built with the most up-to date-parts and care, sometimes unforeseeable problems occur and your machine needs to be fixed. At American Thermoform we offer Extended Warranty options for that additional comfort in knowing that your machine will be protected longer and repaired quickly. Our goal is to repair your machine within 2 business days to minimize your down time. Each Extended Warranty option includes:
- One way shipping
- All replacement parts
- Complete inspection & cleaning of machine
- Any applicable firmware/software upgrades
- Free 30 minute diagnosis (labor is then charged at normal hourly rates should repair time take longer)
- EZ-Form Machine
1 Year Extended Warranty: $409.00 2 Year Extended Warranty: $685.00 3 Year Extended Warranty: $975.00
Tech Specs
Maximum Forming Area:
- One inch less than each dimension of sheet
Frame & Sheet sizes:
- 11×11.5″
- 9.75×11.5″
- 8.5×11″
- 21×29.7cm / A4
Electrical:
- Voltage: 115V or 220V (+/- 10%), 50/60 Hz
- Current: 115V: 15A max
- 220V: 8A max
Measurements:
- Height: 16”
- Width: 16.25”
- Length: 28″ with oven closed, 37” with oven open
- Weight: 50 pounds
Maxi-Form is CE Certified for International usage
