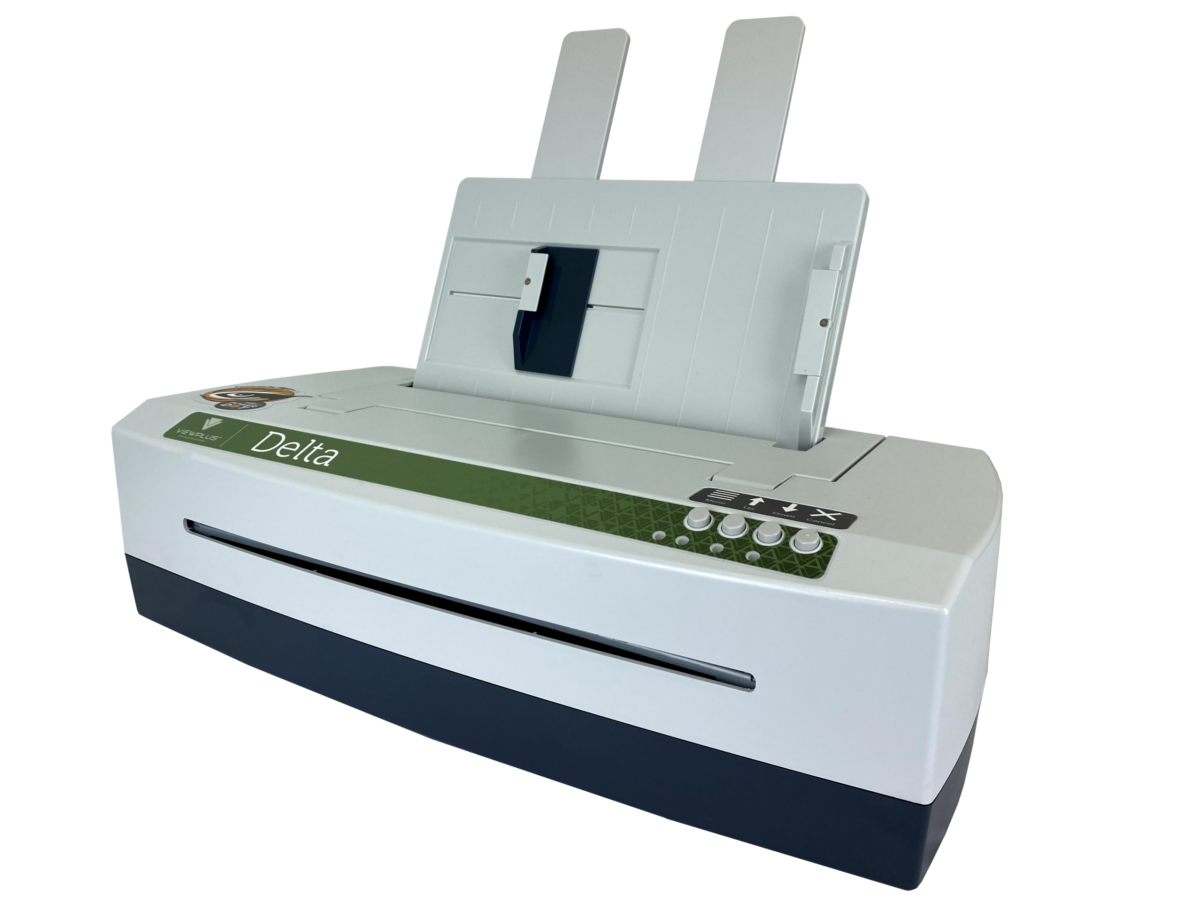

ViewPlus Delta braille embosser
ViewPlus Delta braille embosser

ViewPlus Delta

$4,195.00

Get fast, reliable braille with the ViewPlus Delta with Power-Dot braille. Embossing at 120 CPS, this double-sided embosser gives you Library of Congress standard braille with the highest-resolution tactile graphics.

  • Generation 2 – Power-Dot braille
  • 120 characters per second
  • Industry-leading tactile graphics – 8 dot heights for greater detail
  • 400 PPH (A4 paper size)
  • Double-sided braille printing (interpoint)
  • Includes Tiger Software Suite – braille and tactile graphics software
  • Cut-sheet paper
  • Paper types (includes but not limited to): Letter, Legal, Ledger, Tabloid, Braille, A3, and A4
  • Paper stacker
  • Worry-free maintenance
  • Compatible with Windows/Mac/Linux
  • Free upgrade for firmware
  • Available with Bluetooth and WiFi (with Tiger Box)
  • Standard manufacturing warranty 1 – 2 years depending on region (up to 5 years available)
SKU: VPTT2213-03

Tiger Box

View cart

Description

Get fast, reliable braille with the ViewPlus Delta with Power-Dot braille. Embossing at 120 CPS, this double-sided embosser gives you Library of Congress standard braille with the highest-resolution tactile graphics.

Power-Dot Braille

Power-Dot braille makes the strongest, most tactile braille dots available from any personal braille embosser but still maintains a pleasing rounded dot shape.

Superior High-Resolution Tactile Graphics

The ViewPlus Delta offers the highest-resolution tactile graphics available on an embosser. With 8 different dot heights, users can create distinct tactile graphics more easily than other embossers. Even if images have intersecting lines, like graphs, readers can easily distinguish lines and grids, which can be embossed to different heights.

Braille & Tactile Graphics Software Included

Tiger Software Suite (TSS), is your complete solution for producing braille and tactile graphics. TSS makes it easy to get accurate braille translation in seconds. Insert text and graphics within familiar programs such as Word and Excel and translate with the touch of a button. TSS is great for users of all skill levels!

Versatile Braille Embosser

Whether you need to emboss documents, braille labels or business cards, the ViewPlus Delta is the answer. It is a great choice for home use, using cut-sheet paper.

Specifications

Embossing

Print speed: Up to 120 CPS
Printing Mode: Double-sided
Tactile Resolution: 100 DPI
Tactile Graphic Dot Heights: 7 steps for color representation
Braille Dot Heights: Adjustable in 3 heights

Paper

Paper Width: 7 – 12 inches (176 – 305 mm)
Paper: Cut Sheet
Paper Weight: 33 – 120 lb (90 – 200 gsm)
Paper Types (includes but not limited to): Letter, Legal, Ledger, Tabloid, Braille, A3, and A4

Connection/Compatibility

Connection: USB (1.1, 2.0), Ethernet
Compatibility: Windows 7, 8/8.1, 10

Dimensions/Weight

Height: 6.2 in (158 mm)
Width: 21.9 in (557 mm)
Depth: 10.8 in (275 mm)
Weight: 19.8 lbs (9 kg)

Temperature/Humidity

Recommended Temperature: 59 – 95 °F (15 – 35 °C)
Storage Temperature: -4 – 158 °F (-40 – 70 °C)
Humidity: 20 – 80% RH (non-condensing)

Power Supply

85 – 264 VAC
50/60 Hz (+/- 3%)
Standby: 20 W
Heavy Embossing: 200 W
Noise Level: 70 db(A)
