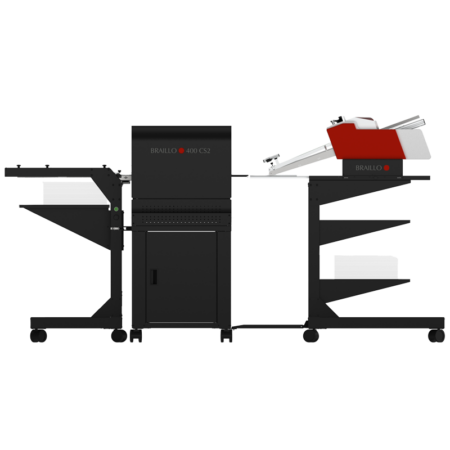

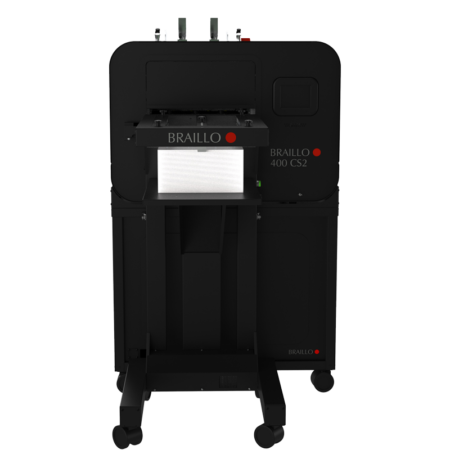

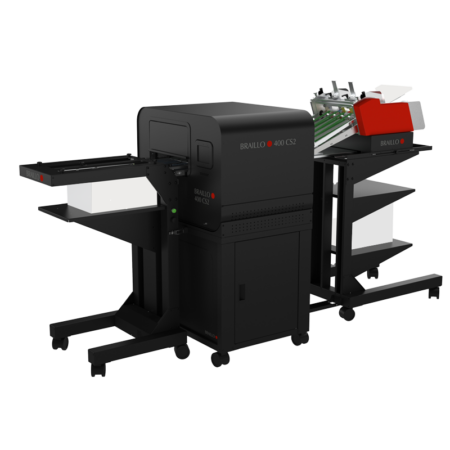

Braillo 400 CS2 Braille Embosser
The world’s first and only production braille embosser using cut-sheet paper
The Braillo 400 CS2 is the world’s first production braille embosser designed for cut-sheet braille paper. It delivers true production performance on individual sheets, supporting both two-page (front/back) and four-page formats for books, magazines, and newspapers.
By eliminating the need for continuous or roll-fed paper, the 400 CS2 simplifies braille production while maintaining the consistent, high-quality output and robust engineering expected from Braillo embossers. With its introduction, Braillo now supports all braille paper formats used in production—continuous, roll-fed, and cut-sheet—and is the only manufacturer to do so.
For pricing, call 800-331-3676, email sales@americanthermoform.com or request a quote by pressing the button below.
- Description
- Warranty
- Tech Specs
- Brochures
- Manual
Description
BRAILLO 400 CS2 Product Description
The Braillo 400 CS2 represents a significant advancement in braille production technology. While high-speed embossers have traditionally relied on continuous or roll-fed braille paper, Braillo has engineered a solution that enables precise, reliable sheet feeding at production speeds. This innovation allows users to produce braille on individual sheets without compromising performance, supporting both two-page-per-sheet (front/back) and four-page-per-sheet formats for books, magazines, and newspapers, as well as producing covers for braille documents—opening new possibilities for flexible document creation and streamlined workflows.
Using cut-sheet paper simplifies paper sourcing and handling, allowing users to take advantage of locally available materials and a range of paper weights. It also eliminates the need for a cutter or burster, while enabling sheets to be pre-punched for easy binding. This flexibility reduces dependency on specialized paper formats and makes it easier to integrate braille production into existing environments.
Built on Braillo’s proven production platform, the 400 CS2 delivers the same durability, reliability, and consistent braille quality trusted by leading production facilities worldwide. Designed for continuous operation, it maintains high-speed performance while ensuring optimal dot quality across every page.
With the introduction of the 400 CS2, Braillo sets a new standard in production braille embossing—combining innovation, flexibility, and performance in a single solution.
Feature Highlights:
- The world’s first and only production braille embosser for cut-sheet paper
- Only embossers to meet all Braille Authority dot height standards
- Sheet feeder holds maximum of 300 sheets (depending on paper size)
- Two- and four-page-per-sheet formats (front/back or newspaper/book/magazine)
- Single-sided and interpoint braille
- 400 CPS (1,200 pages per hour)
- Designed for high-volume production environments
- Precision-engineered for consistent braille output
- High-performance electronics for fast processing
- Accessible design for easy operation and maintenance
- Centralized power shut-off for the complete system
- Wi-Fi, Ethernet, and USB connectivity
- Compatible with PC and macOS systems
- Includes Duxbury Braille Translator
Sheet Feeder
- High-speed feeder designed for sheet-fed production
- Precision alignment system for reliable paper handling
- Supports a wide range of paper sizes
- Enclosed motors and cabling for safe operation
- Centralized power control
Sheet Stacker
- Precision alignment system for consistent stacking
- Integrated sensors ensure proper paper handling
- Easy access for maintenance
- Enclosed motors and cabling for safe operation
Please note that we have developed braille paper specifically for these machines. Learn more about our braille paper.
Warranty
Braillo Stands Behind Their Braille Embossers
In addition to Braillo’s standard warranty, the most comprehensive in the industry, Braillo offers warranty extensions and maintenance contracts to suit your needs. Braillo embossers are recognized for their unsurpassed braille quality and reliability – the extended warranty and maintenance contract options ensure these qualities continue.
Braillo covers the first 3 years
For all Braillo models, the standard warranty covers any defective mechanical and electrical component from the date of delivery throughout the first three years, or up to 8,000 hours – whichever comes first. This amounts to up to 15.6 million braille pages. By the time most embossers have become obsolete or stopped working, Braillo embossers are still under warranty!
Braillo adds an additional 1 year for using Braillo/American Thermoform braille paper
Braillo will offer an additional 1 year to the standard warranty by using Braillo/American Thermoform braille paper with your embosser. The use of poor quality braille paper often causes excessive wear and tear on an embosser, which causes parts to fail prematurely. Using our specially formulated braille paper will help ensure these risks are minimized.
This brings the total warranty to 4 years, or up to 10,700 hours. This amounts to up to 20.8 million braille pages.
This is the industry’s most comprehensive and rich warranty, and shows that Braillo stands behind their braille embossers – no matter what.
Optional 2 Year Warranty Extension
We offer an optional 2 year extended warranty, so when our comprehensive 4 year warranty has expired, you can add an extended parts warranty for further piece of mind.
The price breakdown for the extended warranties are as follows:
300: $3,000
450: $3,500
600: $4,000
600 SR: $7,500
650 SW: $8,500
650 SF: $9,500
Please contact us so we can create the warranty plan that works best for you.
Braillo Maintenance Contracts
For additional peace of mind knowing that your braille embosser is being properly maintained on-site by American Thermoform / Braillo certified technicians, we offer maintenance contracts based on the number of service intervals and the number of embossers to be serviced. Contact us, and we will create a plan that suits your needs.
Braillo Braille Printer Support:
American Thermoform and Braillo offer support via telephone, email, YouTube videos and on-site repair by either American Thermoform / Braillo staff, or our network of factory-trained technicians world-wide. We offer training sessions across the world throughout the year, in addition to Braille workshops. We understand the investment in a Braille printer is a significant one, this is why it is our highest priority to ensure you are continuously supported and your equipment is up and running properly at all times.
*The standard Braillo warranty, the extended warranty and maintenance contract options are offered from a company you can count on – Braillo and American Thermoform stand behind our embossers and our distributors. Please contact us to arrange the warranty and/or maintenance plan that best suits your requirements.*
Tech Specs
Technical Specifications:
Performance:
- 400 CPS (1,200 pages per hour)
- Sheet feeder holds maximum of 300 sheets (depending on paper size)
- Uses a variety of paper weights
- Characters per line: 10-44
- Sheet Length: Maximum of 13” / 33.02 cm
- Sheet Width: 2 page – 4 page (7.87-23”) / (20-58.42 cm)
- Single / Interpoint
- Noise level: 78dBA
Communication with the computer:
- Works with PC and Apple operating systems
- USB, Ethernet, Wi-Fi
Electrical:
- Voltage: Single phase 230V (+/- 10%), 50/60 Hz
- Current: Approx. 8.5A max
- Power: Approx. 1000W max and 76W standby
Measurements:
Embosser:
- Height: 55.8” / 141.8 cm
- Width: 25.9” / 66 cm
- Length: 35.9” / 91.8 cm
- Weight: 421 pounds / 191 kilos
Sheet Feeder:
- Height: 61.1” / 155.2 cm
- Width: 58.9” / 149.6 cm
- Length: 27.6” / 70 cm
- Weight: 221 pounds / 100 kilos
CS2 Stacker:
- Height: 46” / 117 cm
- Width: 40.2” / 102.1 cm
- Length: 23” / 58.4 cm
- Weight: 119 pounds / 54 kilos
Complete Setup (Embosser + Sheet Feeder + Stacker):
-
- Height: 61.1” / 155.2 cm
- Width: 35.9” / 91.2 cm
- Length: 117.8” / 299.3 cm
- Weight: 761 pounds / 345 kilos
Brochures
Braillo Braille Printer Products Brochure
View, download or print the Braillo braille printer brochure
Manual
Braillo 400 CS2 Braille Printer Manual
View, download or print the Braillo 400 CS2 braille printer manual
